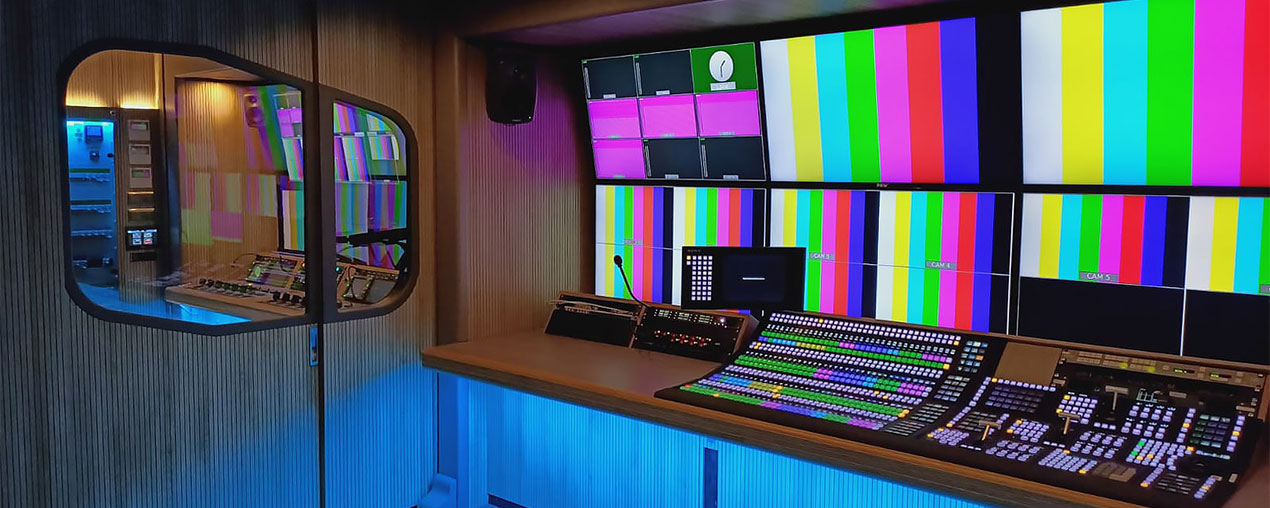

As A-TV moved to its new media complex, it upgraded its entire infrastructure to support 4K operations. One key element of this technology investment was a live broadcast OBVAN dedicated to sports productions.

SPECIFICATIONS

Capacity : Up to 16 comfortable workplaces
Layout : 3-room configuration, 4 areas

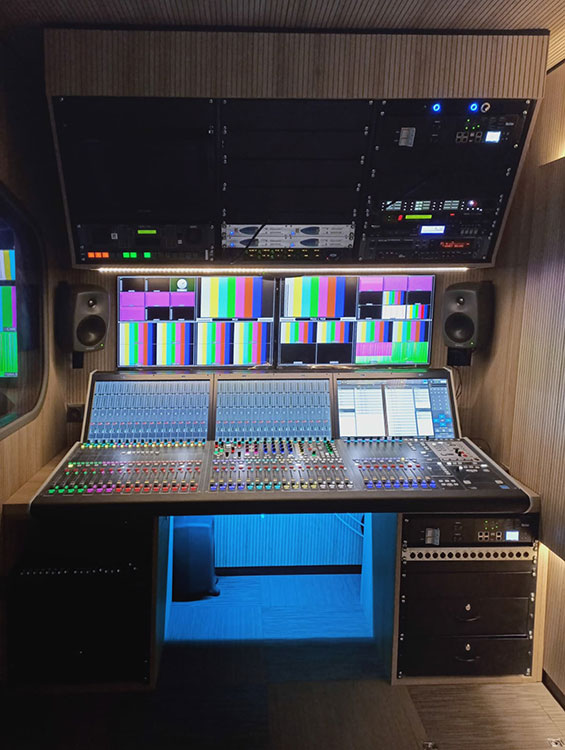

Areas (workplaces) : Audio room (2) Video PCR (6) 2nd PCR (4) Engineering room (4)
Design : OB truck with double side expansion
Typical Production Size : Supports up to 16 cameras
Dimensions : 12 m x 2.55 m x 4.0 m (LxWxH) (width extended: 4.55 m)
Maximum Weight : 26 t

HIGHLIGHTS

• Designed and built for 15 4K camera chains
• Space for up to 16 operators
• 3 galleries; production, audio & engineering
• 2 platforms with railings and folding ladders, protected with awnings

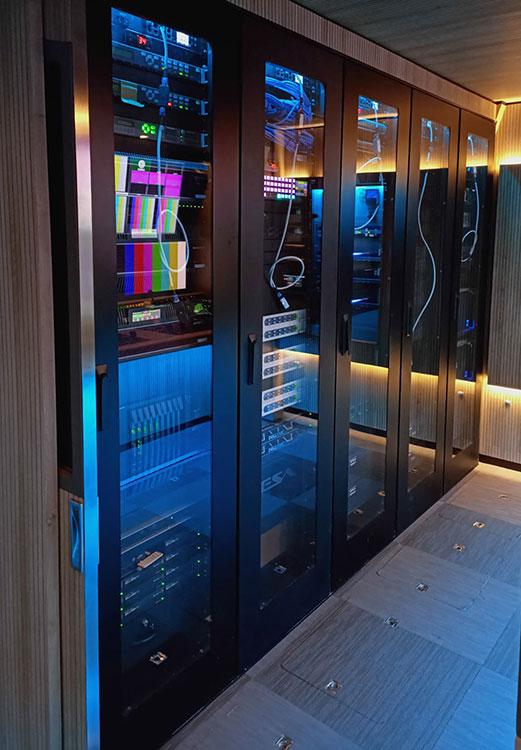

• Access doors and hatches for easy access to the back of the equipment racks and monitor walls
• Dual Air Conditioning system, independent for operational areas and main equipment racks
• PLC based control & monitoring system with auto balance function, lighting control & power monitoring
• IEC 30364-7-717 compliant power system
• All LED lighting solution
• All ladders and railings fold and stay in place, no need for tender vehicle to store them
• Quick system deployment, fast transition from ROAD mode to PRODUCTION mode within 10 minutes
