Mega DXP MARK III for ART Productions Libya

Product Code

SRT-P-ST-DXP-2

Date of completion

2024

This is the latest investment for sports production in Libya past ten years. ART Productions has invested in state of the art sports procution obvan.


SPECIFICATIONS


Capacity : Up to 24 comfortable workplaces
Layout : 3-room configuration, 4 areas

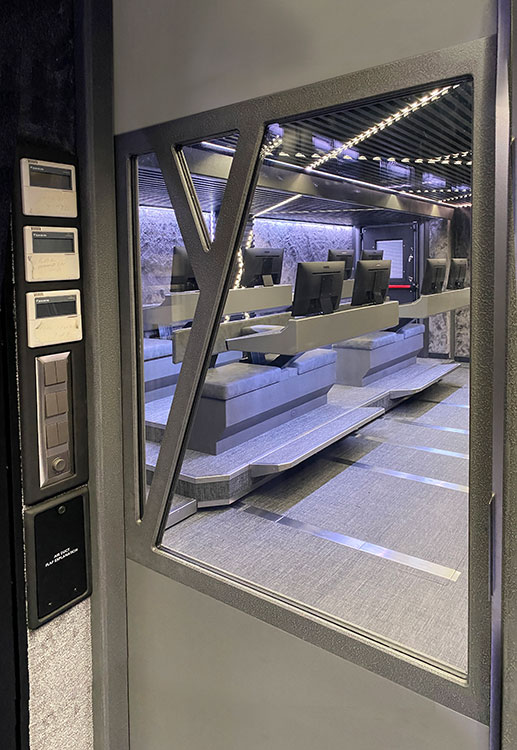

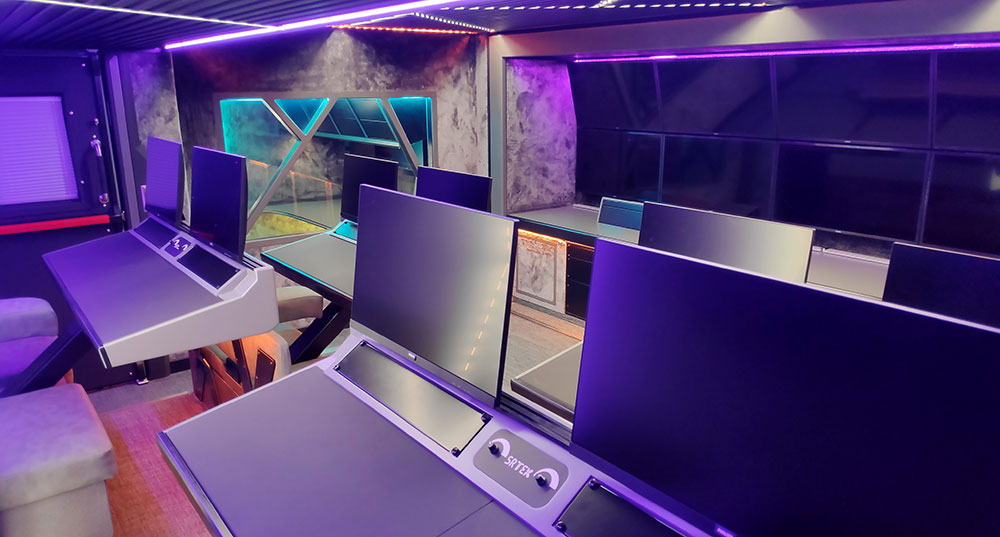

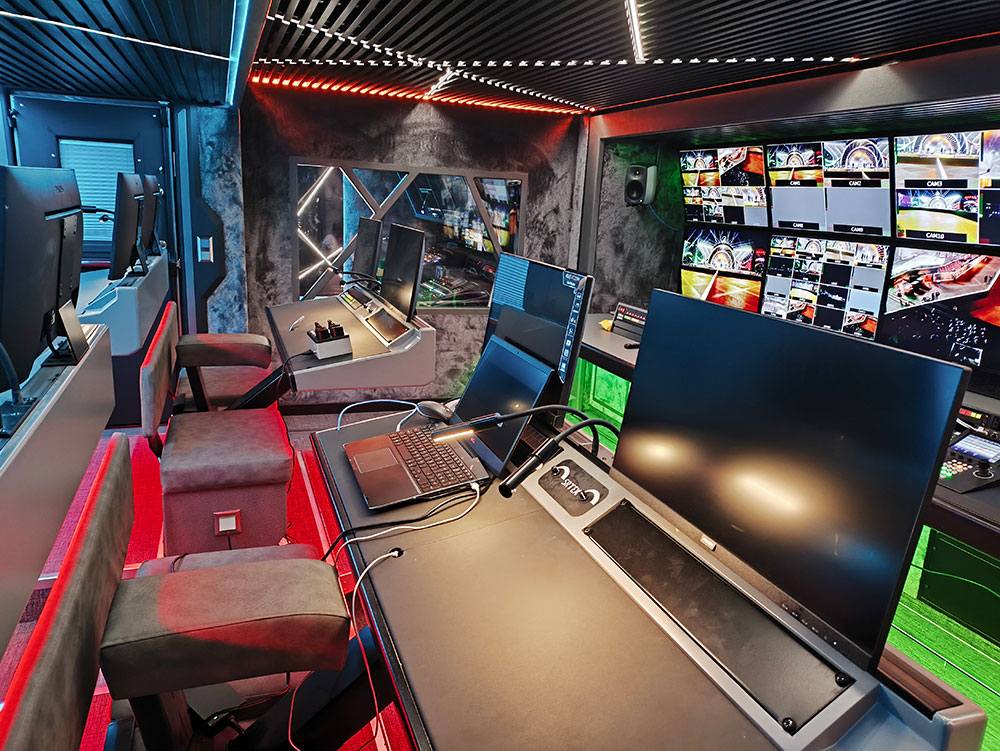

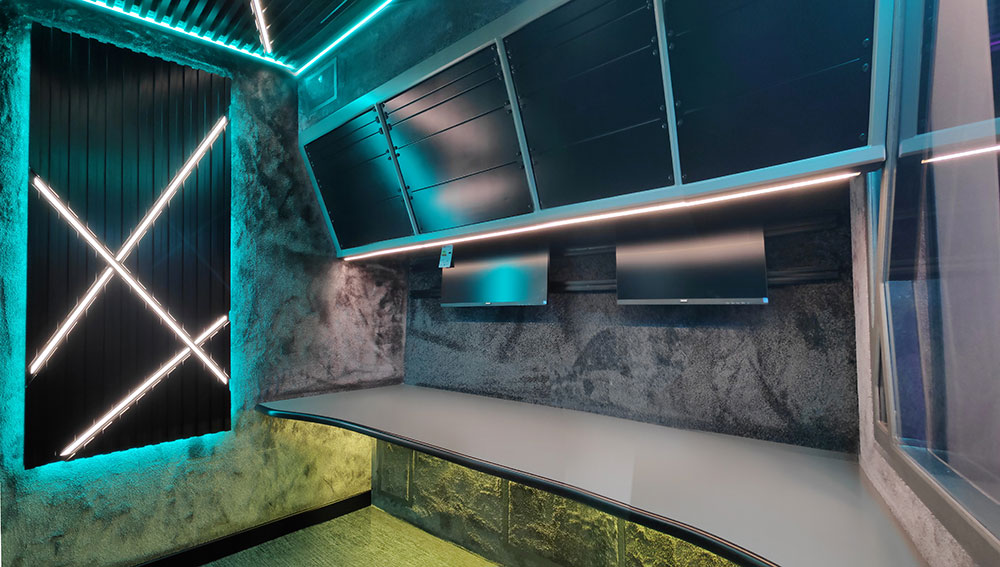

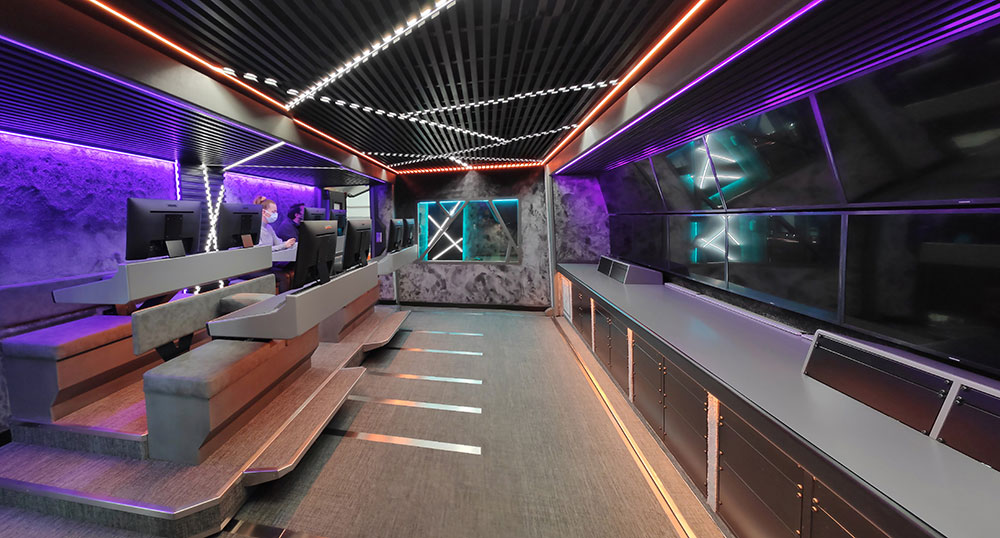

Areas (workplaces) : Audio room (2) Video PCR (8) 2nd PCR (8) Engineering room (6)

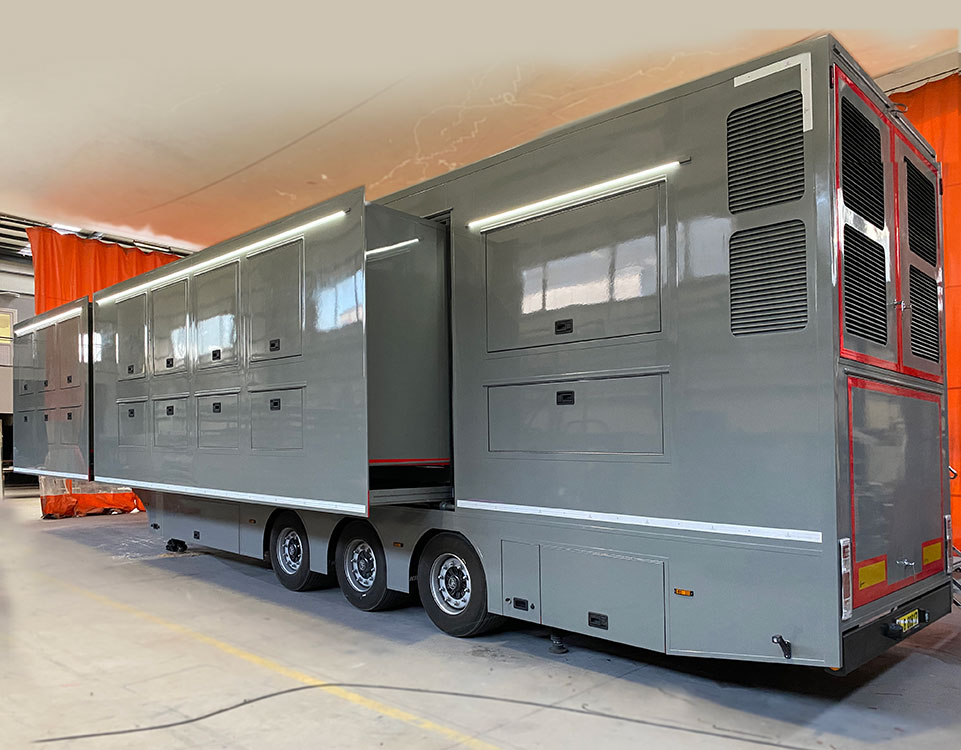

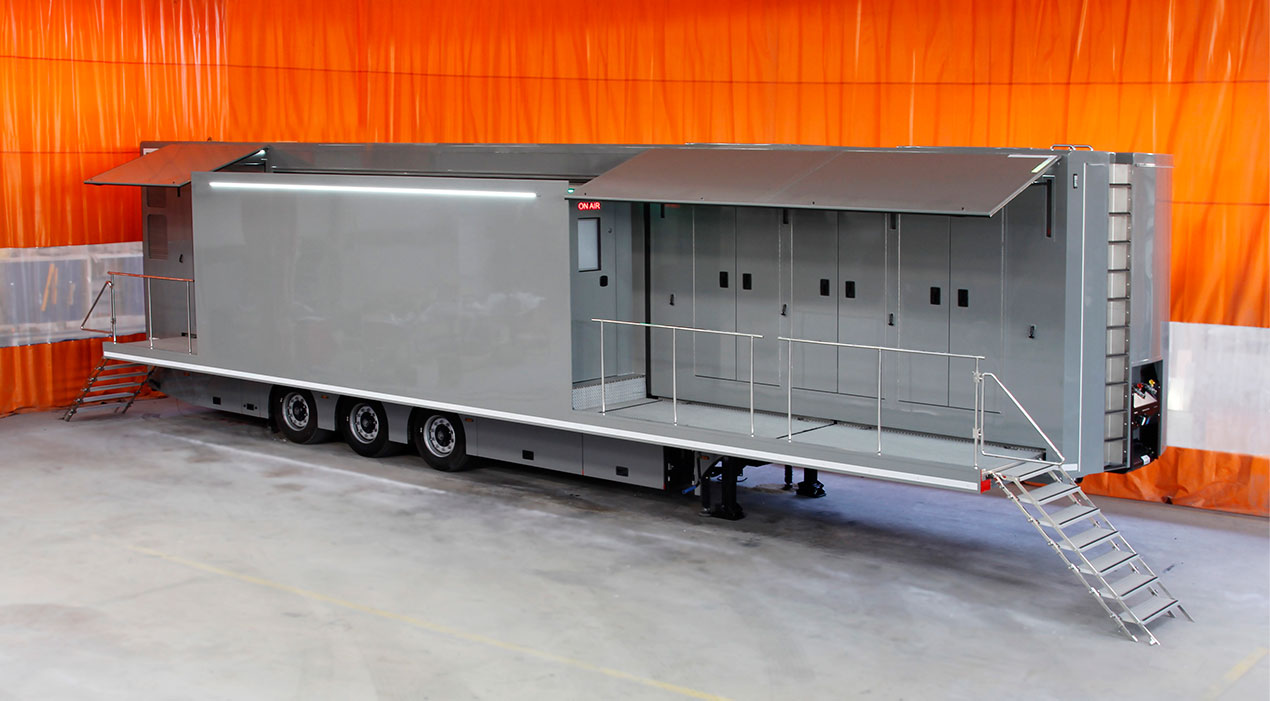

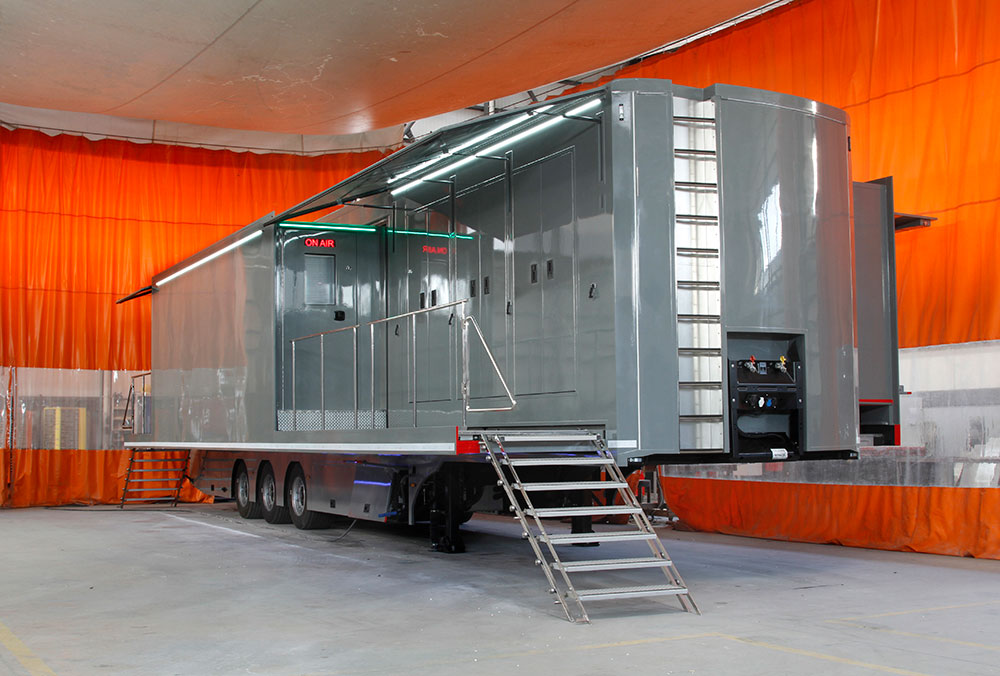

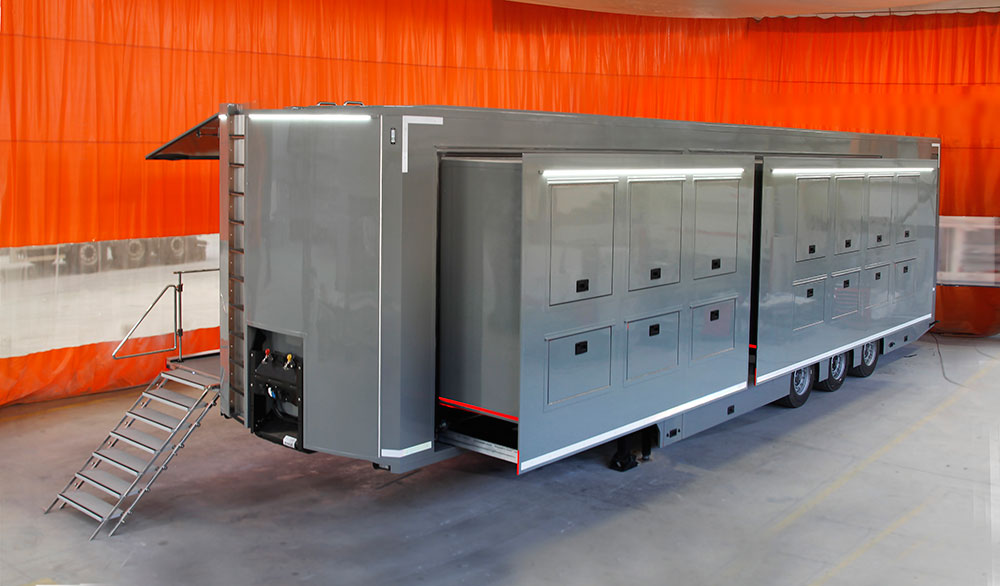

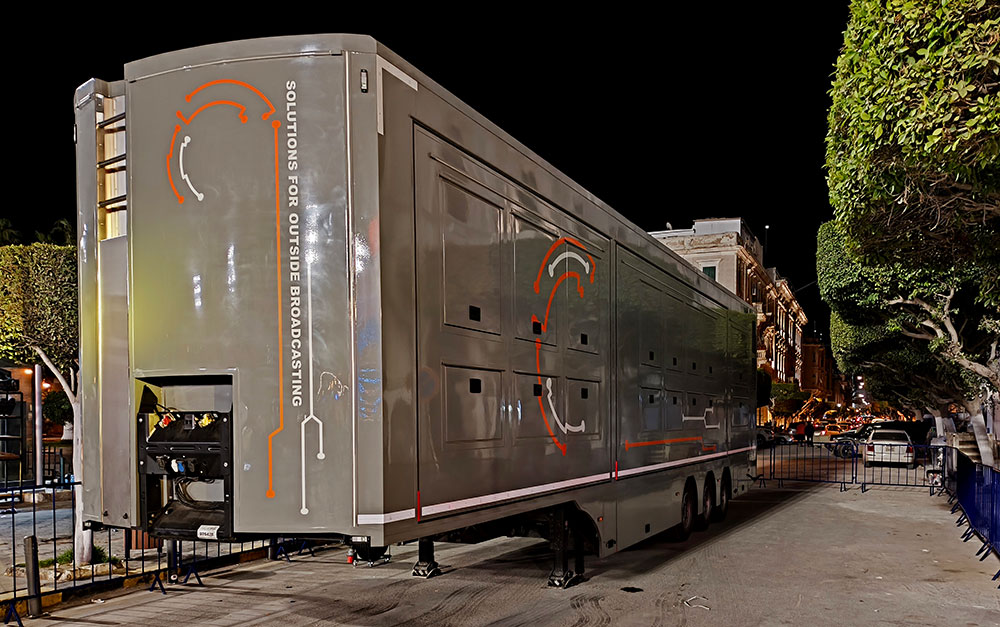

Design : OB semi-trailer with double side expansion
Typical Production Size : Supports up to 24 cameras
Dimensions : 13.8 m x 2.55 m x 4.0 m (LxWxH) (width extended: 4.75 m)
Maximum Weight : 36 t

HIGHLIGHTS


• Designed and built for 24+ 4K/HD camera chains
• Space for up to 24 operators

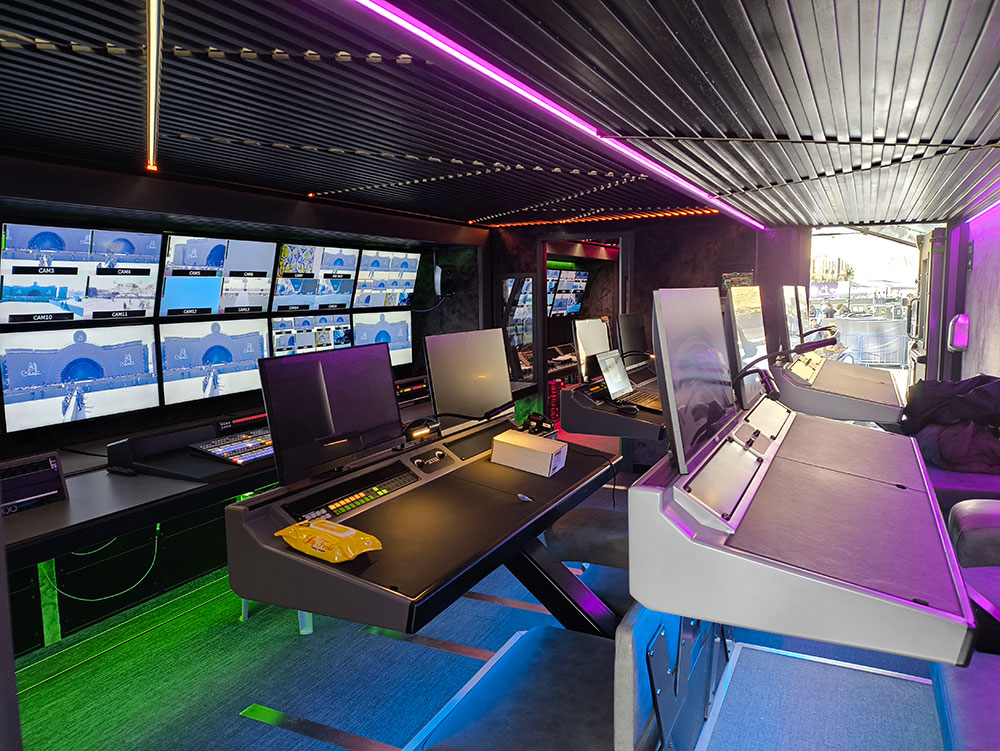

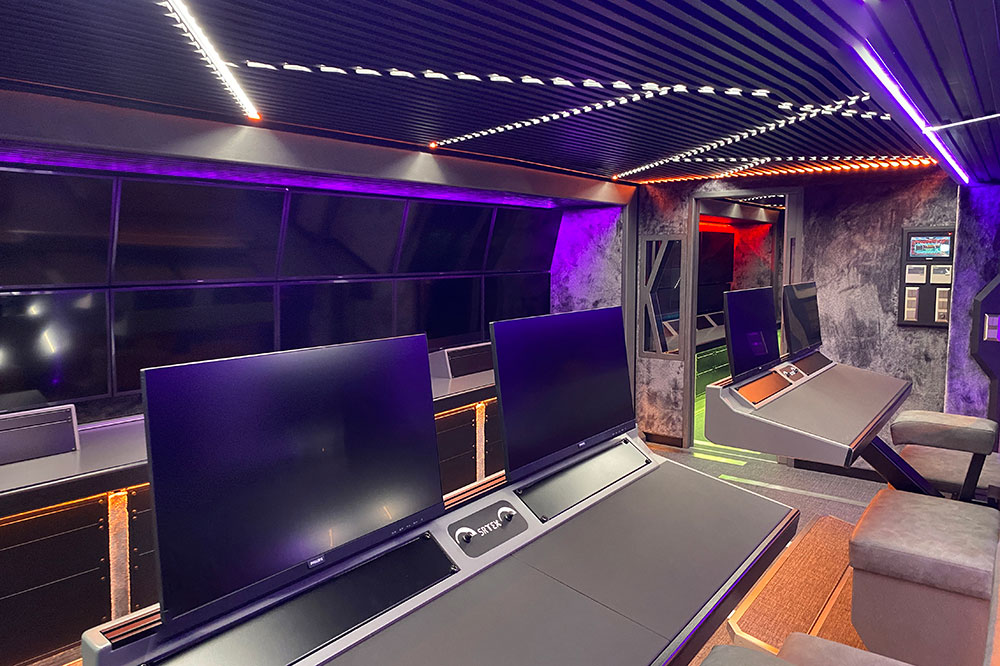

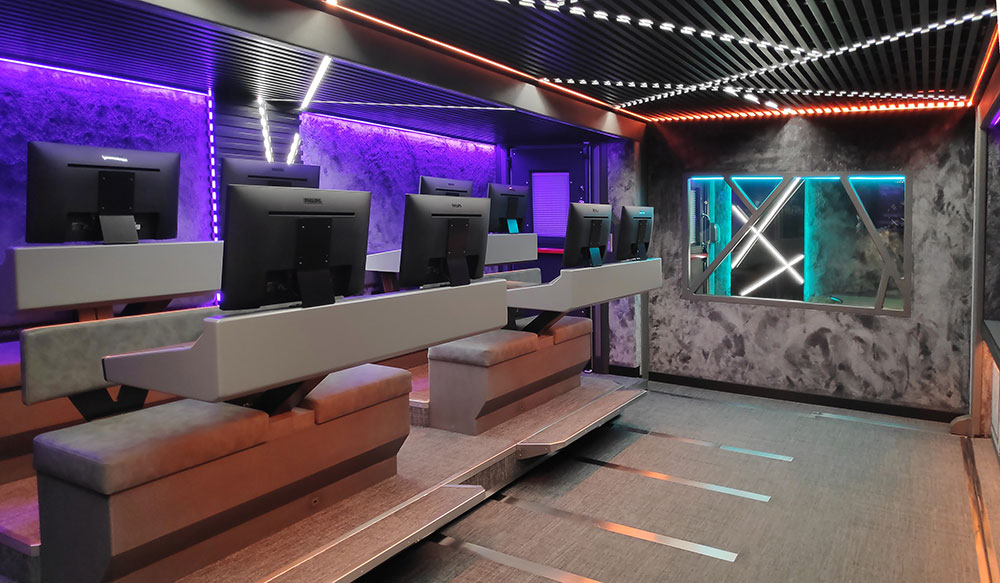

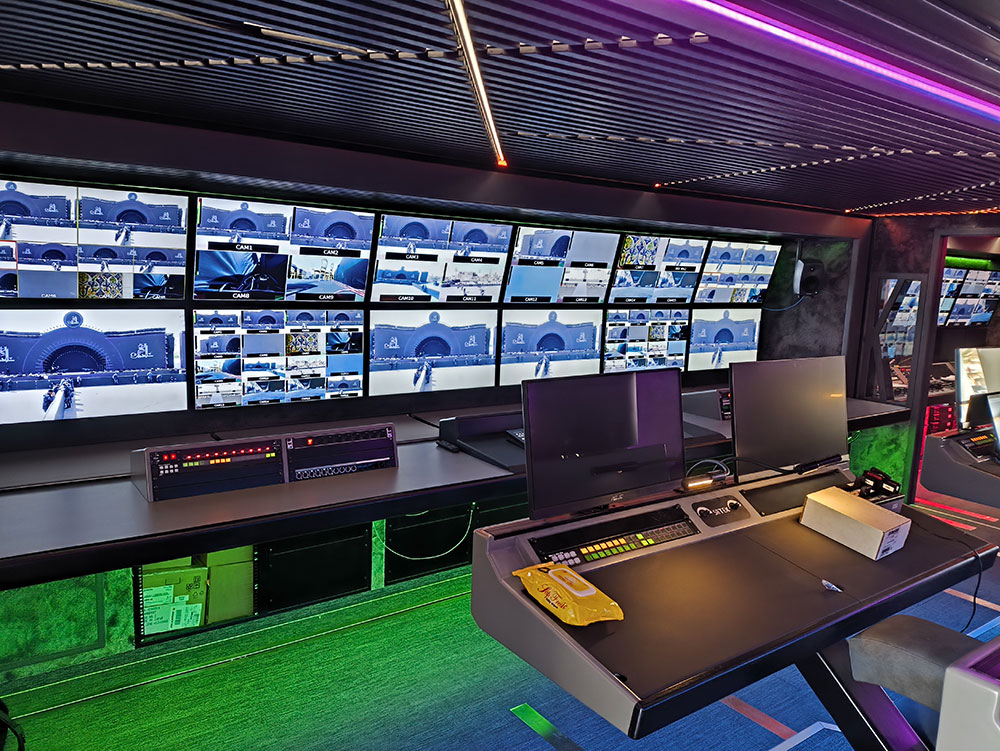

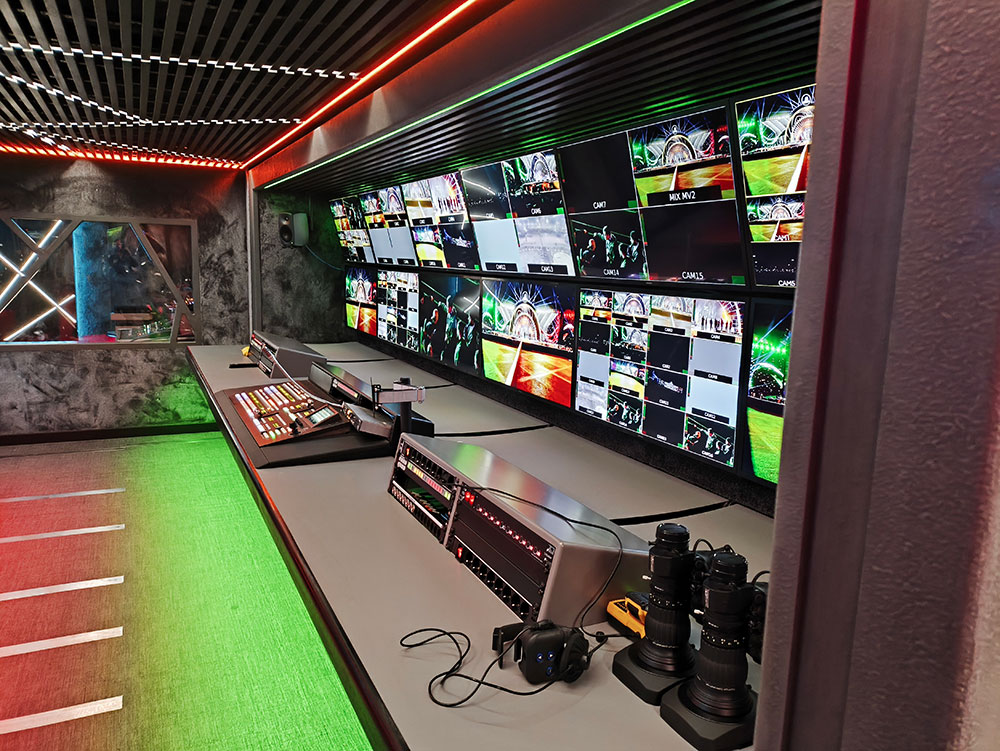

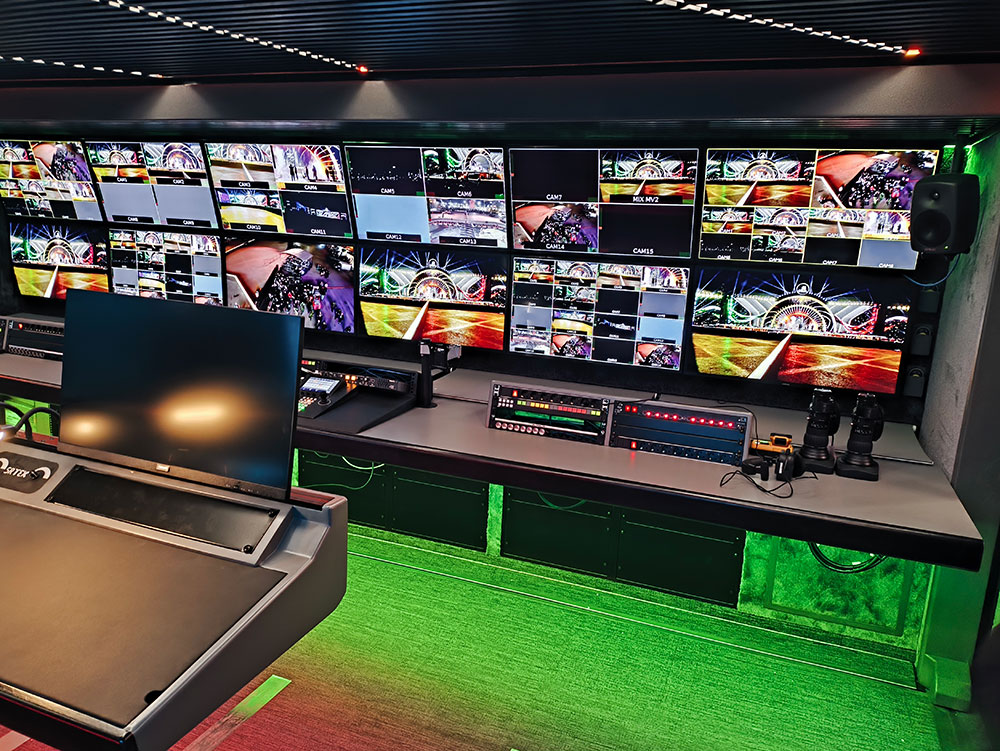

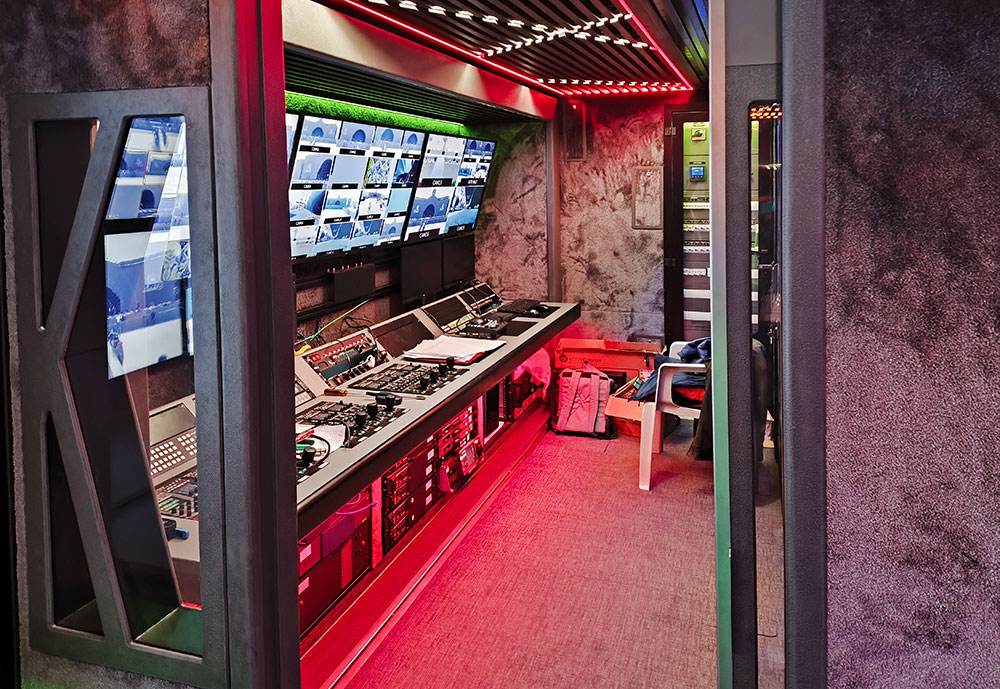

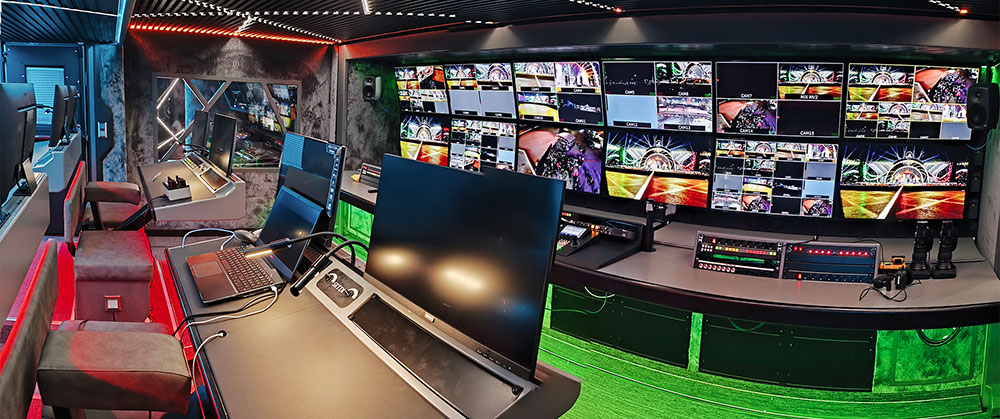

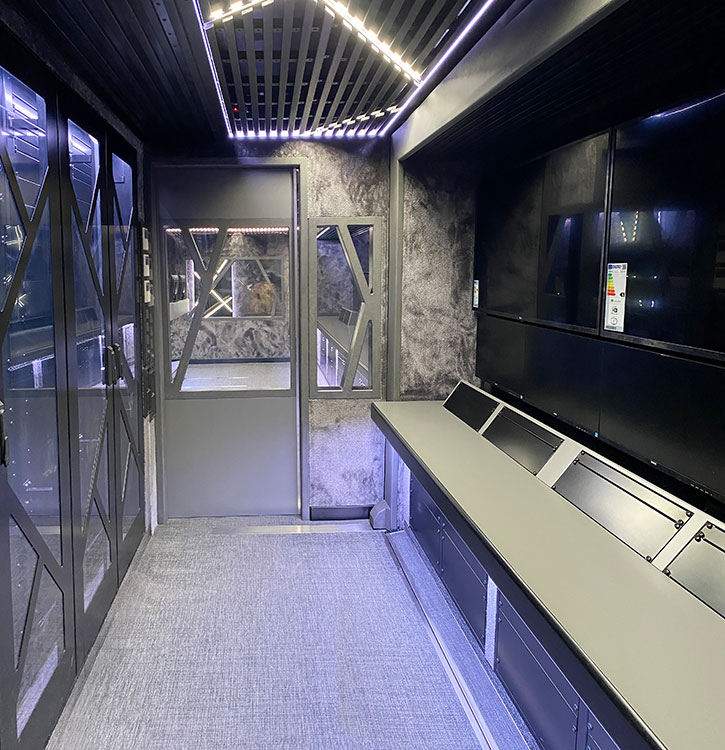

• 3 galleries; production, audio & engineering

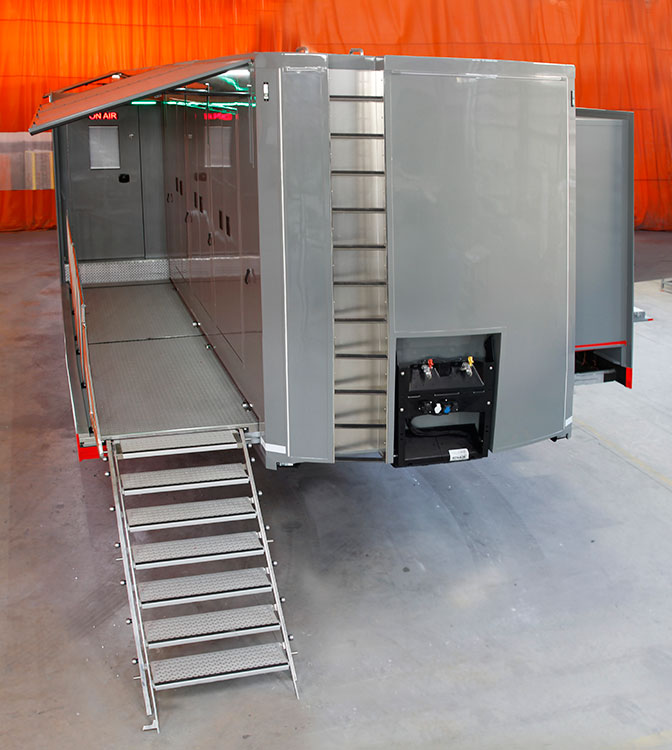

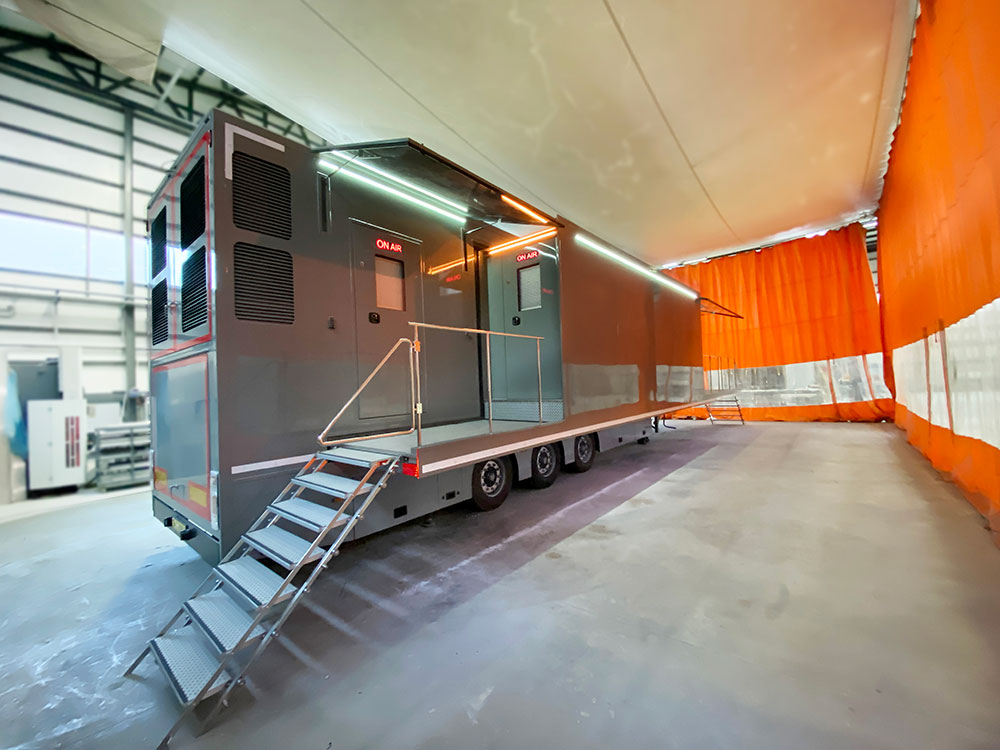

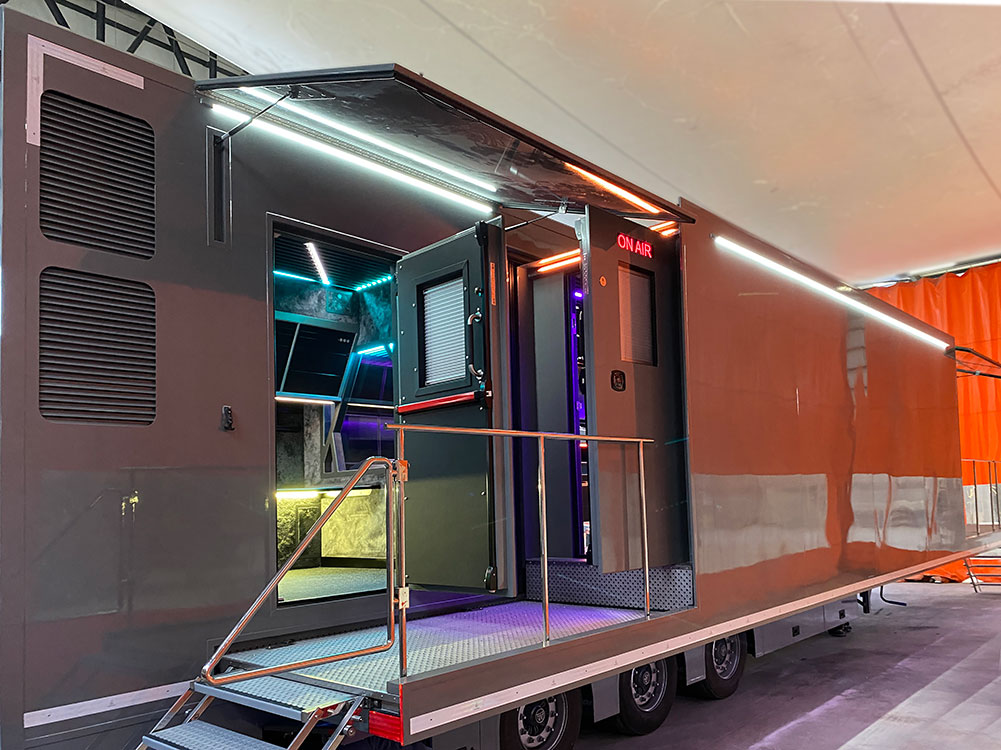

• 2 platforms with railings and folding ladders, protected with awnings

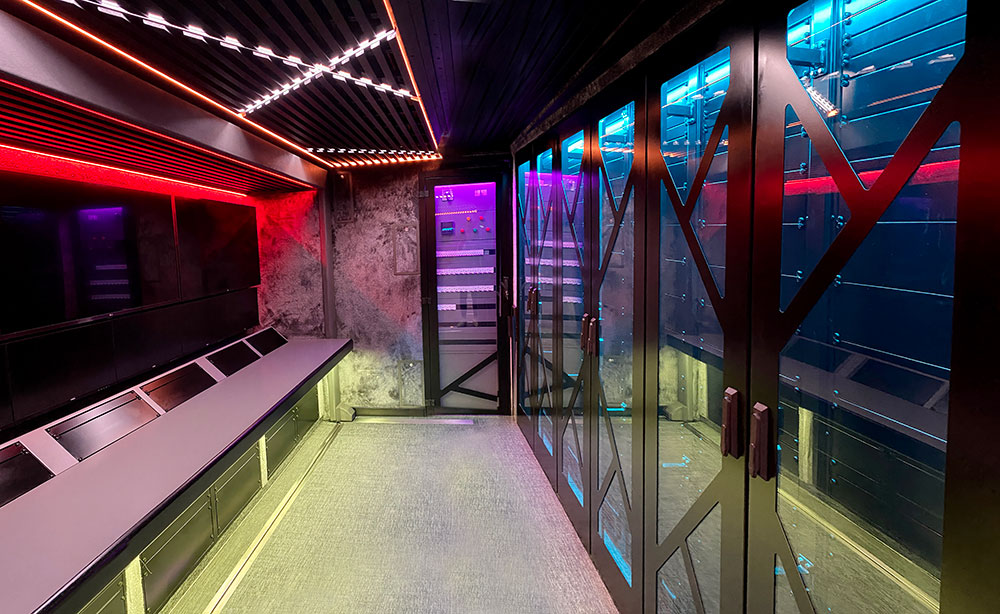

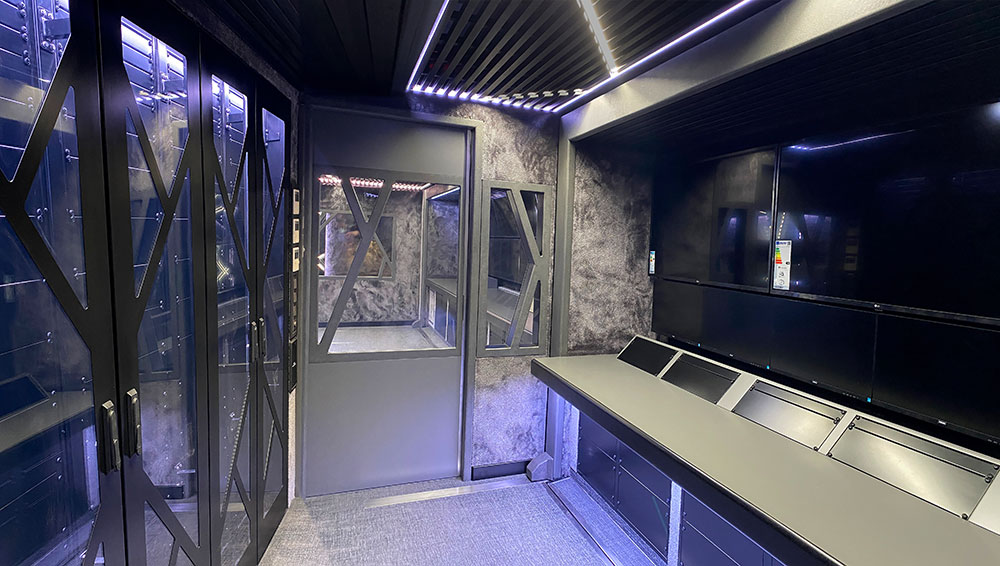

• Access doors and hatches for easy access to the back of the equipment racks and monitor walls
• Dual Air Conditioning system, independent for operational areas and main equipment racks
• PLC based control & monitoring system with auto balance function, lighting control & power monitoring
• IEC 60364-7-717 compliant power system
• All LED lighting solution
• All ladders and railings fold and stay in place, no need for tender vehicle to store them
• Quick system deployment, fast transition from ROAD mode to PRODUCTION mode within 10 minutes
